Pannellux features
Material:
Pannellux is the new range of light panels, with an aluminum frame and LED backlighting. Refined design thanks also to the limited thickness of the frame (17mm).
Print:
Customized on backlight or other supports suitable for backlighting, easily interchangeable thanks to the possibility of removing the front plexiglass panel (magnetic) simply using the suction cup provided. Various formats available: A4, A3, A2, A0, 70x100cm, 100x140cm, 100x200cm.
Special Features:
The product works in low voltage at 12 volts ensuring safe installations for anyone (power supply provided).
Main technical data of Pannellux LED light frames:
| F.to | Print Size | Consumption | Frame Format (bxhxp) |
| A4 | 210x297 mm (visible area 190x277 mm) | 2 w | b260mm h347mm p17mm |
| A3 | 297x420 mm (area visible 277x400 mm) | 4 w | b347mm h470mm p17mm |
| A2 | 420x594 mm (area visible 400x574 mm) | 8 w | b470mm h644mm p17mm |
| A0 | 841x1189 mm (area visible 821x1169 mm) | 15 w | b891mm h1239mm p17mm |
| 70x100 cm | 700x1000 mm (area visible 680x980 mm) | 19 w | b750mm h1050mm p17mm |
| 100x140 cm | 1010x1410 mm (area visible 980x1380 mm) | 28 w | b1050mm h1450mm p17mm |
| 100x200 cm | 950x1950 mm (visible area 930x1930 mm ) | 38 w | b1000mm h2000mm d17mm |
If the light frames are displayed in a shop window, we recommend spacing them 50cm from the glass to avoid expansion due to excessive heat.
All products that cannot be added directly to the cart, requiring a series of preliminary choices by the buyer (configuration), are classified as "customized" products. The configuration choices result in different interventions to finalize the product. Following the order, the goods from the “semi-finished” state are prepared based on the specific choices of each customer.
- wall / ceiling
- easy print change
- various formats available
Reviews for Pannellux

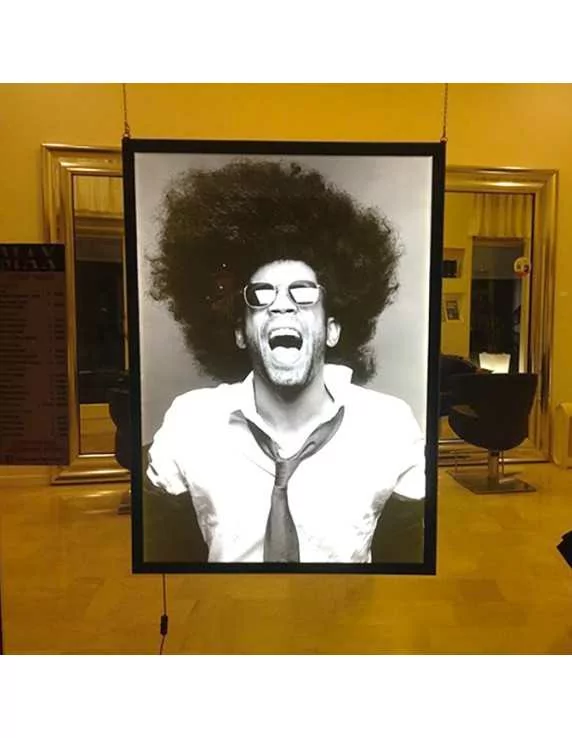

These light frames, in addition to being wall mounted, can be suspended with cables and attachments (to be quoted separately by contacting our sales office).
I need to change graphics frequently. Is it easy to replace the print on Pannellux?
Yes, changing the print is quick and easy thanks to the possibility of removing the magnetic front panel simply by using the suction cup provided.
Yes, changing the print is quick and easy thanks to the possibility of removing the magnetic front panel simply by using the suction cup provided.
Is it possible to hang Pannellux from the ceiling?
Yes, Pannellux can be hung from the ceiling using optional accesses (cables and hooks not included). Contact our sales office for more information on the suspension kit.
Yes, Pannellux can be hung from the ceiling using optional accesses (cables and hooks not included). Contact our sales office for more information on the suspension kit.
